ホーム / 18650-1P2S 2200mAh 7.4V外付けバッテリーパック

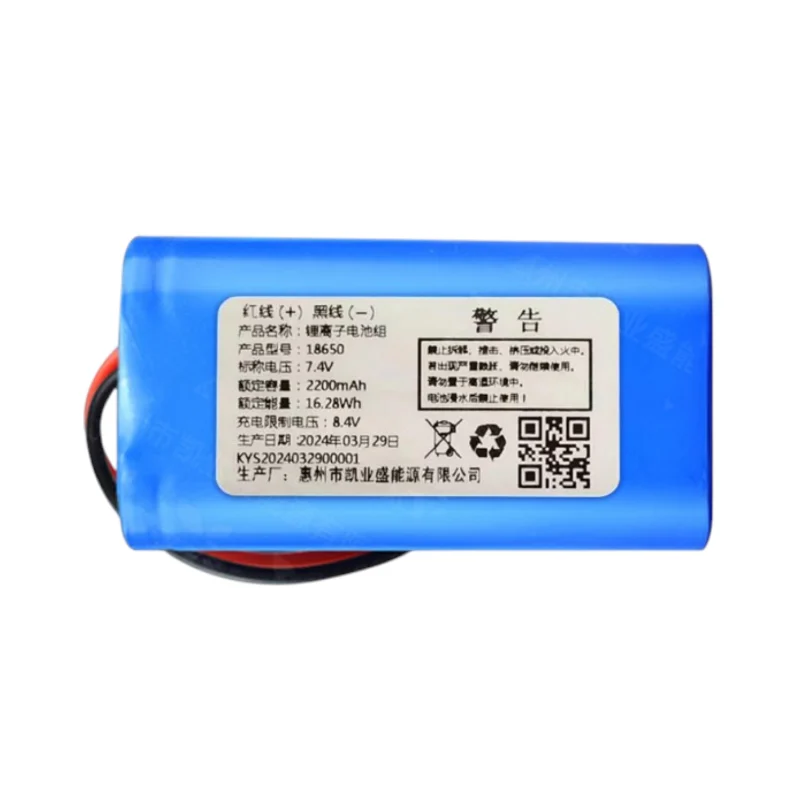

This 7.4V lithium battery pack delivers stable, reliable power for a wide range of devices. Built for long-lasting performance with low self-discharge and multiple safety protections. Perfect for personal care, smart electronics, payment devices, and medical equipment. OEM customization available.
- Model: 18650-1P2S-7.4 V
- Cell Dimensions: 22 × 38 × 68 mm
- 公称電圧:7.4 V
- Discharge Current: 15~25 A
- Capacity: 2200 mAh
- 内部抵抗:180 mΩ
- 用途:電子機器
- 充電電圧:8.4 V
無料見積もりを取得
製品リストに戻る
概要
The Gloflux 7.4V Lithium-Ion Battery Pack delivers stable and efficient power for a wide range of electronic devices. It is designed for systems that need reliable energy output and flexible installation. The structure supports an external battery pack configuration, which improves usability and simplifies power management for different applications.
External Battery Pack Flexibility
The external battery pack design allows users to connect and replace the power source easily. As a result, devices gain better flexibility in operation and maintenance. In addition, this structure reduces internal space limitations. Therefore, product designers can focus on compact device layouts while maintaining strong battery performance.
Stable 7.4V Dual-Cell Performance
The battery pack uses a 7.4V dual-cell lithium configuration to ensure stable output. Moreover, it delivers consistent voltage under different load conditions. The system also improves energy efficiency during continuous use. Consequently, devices achieve smoother performance and longer operating time.
Built-in Safety and Protection System
The battery pack includes an integrated Battery Management System for full protection. It prevents overcharge, over-discharge, overcurrent, and short-circuit problems. In addition, it monitors temperature during operation. Therefore, the system improves safety and helps extend overall battery lifespan.
Efficient External Installation Design
The external battery pack structure supports easy connection to a wide range of devices. Furthermore, it simplifies replacement and reduces maintenance effort. For example, it works well in portable electronics, industrial equipment, and smart systems. As a result, users can manage power more efficiently in different environments.
製品詳細
製品の特徴
- 🛠️ カスタマイズ可能
顧客の要望に合わせてカスタマイズ可能 - ⚡ ハイパワー
最大20°Cの放電率が利用可能です - ⏱️ 長周期寿命
長期的な製品使用ニーズを満たします - 🛡️ 高い安全性
包括的な安全試験に合格 - 🔋 真定格容量
プロダクトデザイン能力に合致します - ⚛️ 多化学オプション
LCO、NCM、NCA、LFPシステムをカバーしています - 🧰 多重保護機構
過充電、過放電、過電流、ショート回路保護を備えた内蔵保護ボード
製品応用分野
この製品は、さまざまな携帯型および電源型電子機器に適しており、典型的な用途は以下の通りです:
-
パーソナルケアと健康: 電動歯ブラシ、美容機器、フィットネストラッカー、医療機器
-
スマートデジタル&オーディオ: ヘッドホン、スピーカー、ネブライザー、おもちゃ、ライト
-
金銭的支払いとオフィス: POSマシン、USBトークン、ポータブルプリンター
技術的パラメータ
| モデル | 18650-1P2S-7.4 V |
| セルサイズ | 22 × 38 × 68 mm |
| 放電電流 | 15~25 A |
| 公称電圧 | 7.4 V |
| 収容人数 | 2200 mAh |
| 内部抵抗 | 180 mΩ |
| 加工方法 | 必要に応じてカスタマイズ |
| 応用 | Electronic Devices |
| 充電電圧 | 8.4 V |
