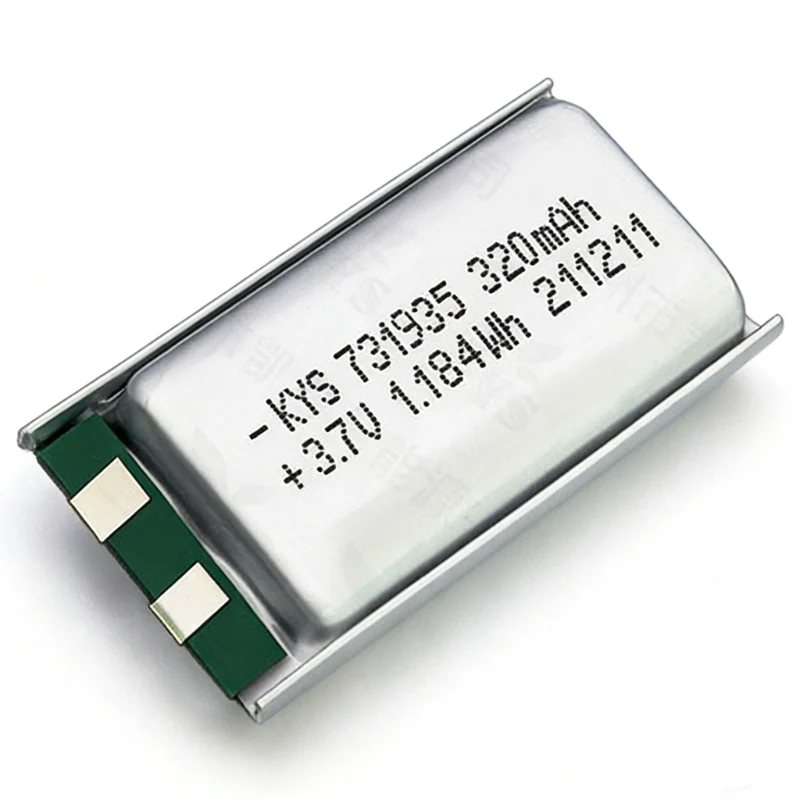

731935 高出力3.7Vリポセル

A high power 3.7V LiPo cell follows a single pouch-cell architecture designed for elevated discharge behavior, and it maintains a nominal voltage of 3.7V with a regulated full-charge limit of 4.2V. Meanwhile, the 320mAh configuration is formed through tightly controlled electrode stacking and electrolyte dosing, which ensures consistent electrochemical response during rapid load transitions. In addition, engineers calibrate internal impedance so the cell can sustain a stable 3A discharge profile under defined conditions.

Materials System and Electrode Composition

Manufacturers construct the internal structure using layered lithium cobalt-based cathode coatings paired with graphite anodes, while copper and aluminum foils act as current collectors to support efficient electron transfer. Furthermore, a microporous polymer separator is inserted between electrodes to prevent direct contact and reduce internal short-circuit risk. At the same time, the aluminum-plastic laminated pouch encloses the chemistry and maintains structural flexibility during pressure variation.

Cell Assembly and Welding Process

Technicians first sort cells by impedance and capacity matching to reduce imbalance within the production batch. Next, precision spot welding connects nickel tabs, and this process ensures stable current pathways while limiting localized heat stress. After that, an integrated protection circuit module (PCM/BMS) is attached to regulate over-charge, over-discharge, and over-current behavior. Meanwhile, insulated lead wires are fixed and strain-relieved to maintain electrical continuity during mechanical movement.

Encapsulation and Structural Finishing

Once internal assembly is completed, the pouch cell is sealed using controlled heat-lamination, which locks in electrolyte composition and prevents moisture ingress. Additionally, outer insulation layers are applied to reinforce mechanical stability and maintain dimensional consistency. Subsequently, pressure retention and insulation resistance tests are performed to verify sealing integrity before final packaging.

Standards and Electrical Control Procedures

Production typically follows international safety and transport regulations such as UN38.3, CE, and RoHS compliance frameworks. Moreover, charging is managed through a constant-current/constant-voltage (CC/CV) method, which limits the maximum cell voltage to 4.2V while stabilizing lithium-ion intercalation. Finally, cycle testing under controlled temperature conditions evaluates long-term electrochemical stability and verifies discharge consistency at high current levels.

製品の特徴

• カスタマイズ対応:顧客のニーズに応じてカスタマイズ可能です
• 高出力:最大20°Cの放電
• 急速充電:最大3Cまで充電
• 長寿命:長期製品の使用要件を満たしています
• マルチマテリアルシステム:LCO、NCM、NCA、LFP、その他の材料システムをカバーします
• 高安全性:安全性能試験に合格
• 十分な容量:製品設計能力要件を満たす
• High Temperature Resistance: Operating temperature range -20℃ ~ 80℃

応用シナリオ

• 電子アトマイザー
• ボイスレコーダー
• ヘッドホン
• 美容デバイス
