ホーム / 7.4V 2600mAh 2S1P 18650 リチウムイオンバッテリーパック(注入ポンプモニタリングシステム用)、1200サイクル寿命

7.4V 2600mAh 2S1P 18650 リチウムイオンバッテリーパック(注入ポンプモニタリングシステム用)、1200サイクル寿命

The 7.4V 2600mAh 2S1P 18650 lithium-ion battery pack delivers stable, rechargeable power for infusion pump monitoring systems and portable medical equipment. Designed for up to 1,200 cycles, it helps reduce replacement frequency and maintenance costs. Built-in protection supports safer operation, while customizable connectors, wiring, housings, and sensors ensure compatibility with different clinical and home healthcare applications in daily use worldwide.

モデル: 18650-2S1P
セル寸法: 18× 65 mm
公称電圧: 7.4V
放電電流: 7.8 A
収容人数: 2600 mAh
内部抵抗:80 mΩ
応用: Infusion Pump Monitoring Systems
充電電圧: 8.4 V

無料見積もりを取得

製品リストに戻る

7.4V 2600mAh 2S1P 18650 リチウムイオンバッテリーパック(インフュージョンポンプ用)

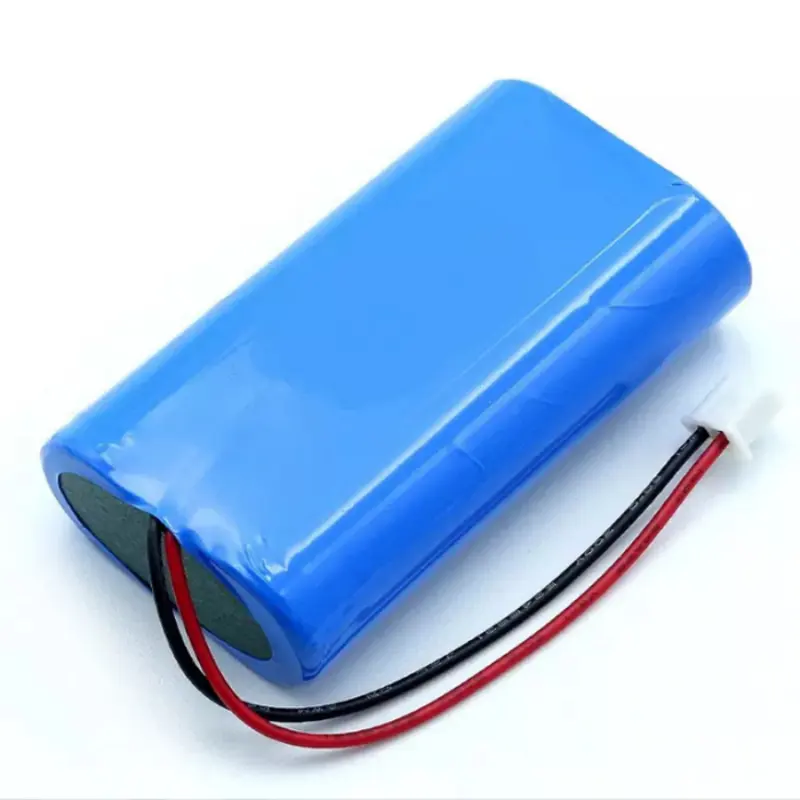

Rechargeable medical battery with 1200-cycle life for monitoring equipment

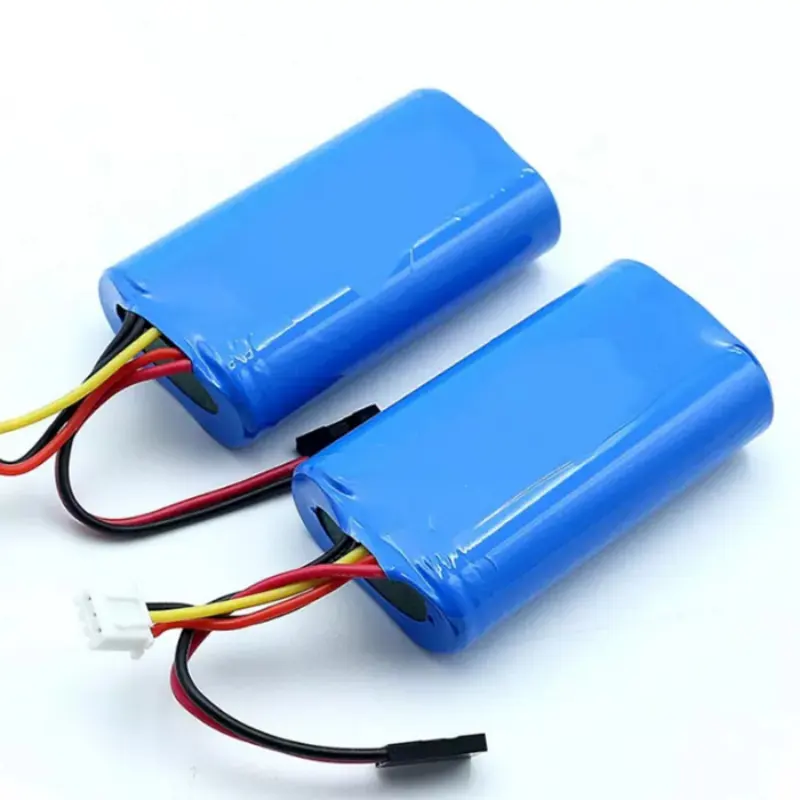

Compact 18650 battery pack for portable infusion pump systems

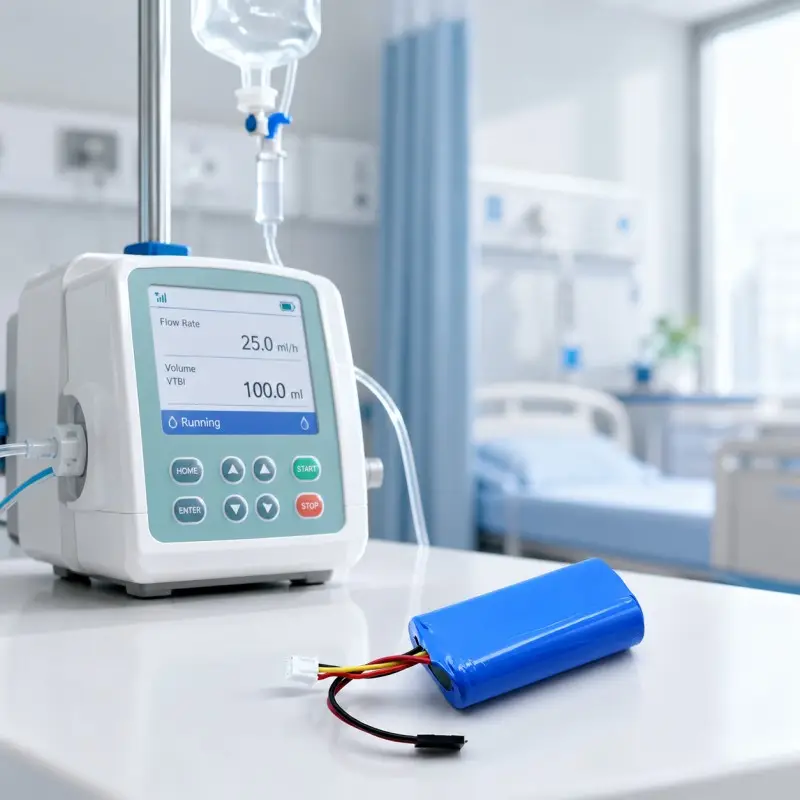

Long-life replacement battery pack for patient monitoring and clinical equipment

Custom 7.4V lithium battery with protection circuit for medical devices

概要

製品詳細

技術的パラメータ

連絡先

概要

The 7.4V 2600mAh 2S1P 18650 lithium-ion battery pack is designed for infusion pump monitoring systems and other portable medical equipment requiring stable, rechargeable power. Built with two high-quality 18650 cells connected in series, it delivers a nominal voltage of 7.4V and dependable 2600mAh capacity for consistent operation. With a cycle life of up to 1,200 charges under suitable operating conditions, the pack helps reduce replacement frequency and long-term maintenance costs. An integrated protection circuit helps protect against overcharging, over-discharging, overcurrent, and short circuits, supporting safer use in clinical environments. The battery can be customized with specific connectors, wire lengths, housings, temperature sensors, and communication functions to match different infusion pump designs. Compact construction, reliable discharge performance, and OEM/ODM flexibility make this battery pack suitable for hospitals, clinics, ambulances, and home healthcare applications where uninterrupted monitoring and mobility are essential. It also supports customized labeling, packaging, and validation requirements for manufacturers.

製品詳細

7.4V 2600mAh Output: Provides stable rechargeable power for infusion pumps, monitoring systems, and portable medical equipment.

2S1P Configuration: Two 18650 lithium-ion cells are connected in series to achieve a compact and reliable 7.4V battery system.

Long Cycle Life: Supports up to 1,200 charge and discharge cycles under appropriate charging, temperature, and operating conditions.

Integrated Protection: Built-in protection helps prevent overcharging, over-discharging, overcurrent, and short circuits.

Compact and Lightweight: The space-saving structure is suitable for installation inside portable medical devices.

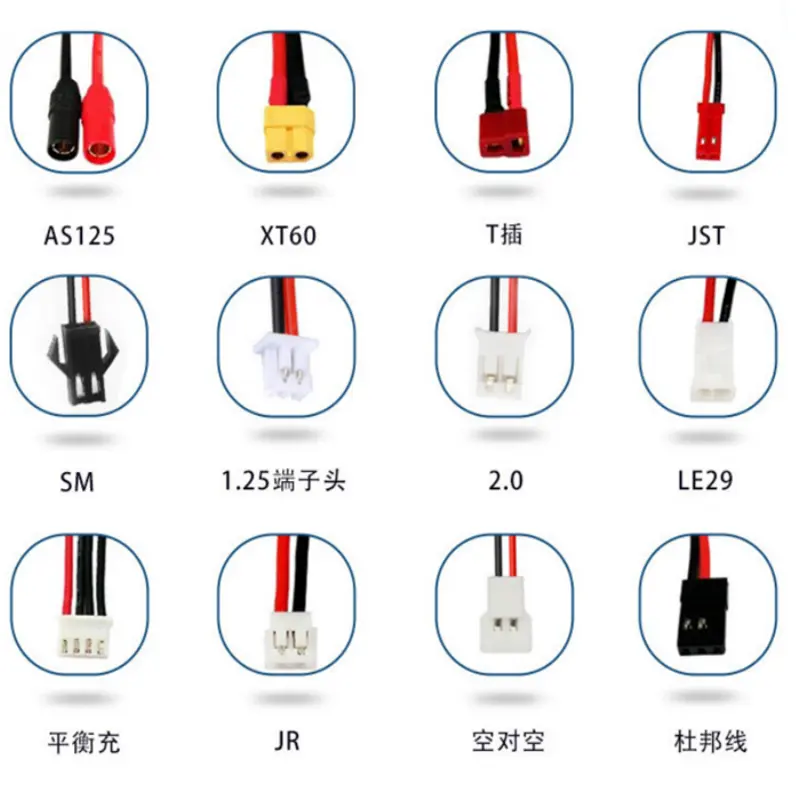

Customizable Design: Connectors, wire lengths, battery housing, BMS, temperature sensors, labels, and packaging can be customized.

Reliable Performance: Delivers consistent power for continuous monitoring and mobile clinical use.

応用分野

注入ポンプ
Syringe pumps
Infusion monitoring systems
Portable patient monitors
Medical diagnostic equipment
Emergency medical devices
Home healthcare equipment
Portable clinical instruments

技術的パラメータ

モデル	18650-2S1P
セルサイズ	18 × 65mm
放電電流	7.8 A
公称電圧	7.4V
収容人数	2600 mAh
内部抵抗	80 mΩ
加工方法	必要に応じてカスタマイズ
応用	Infusion Pump Monitoring Systems
充電電圧	8.4V
