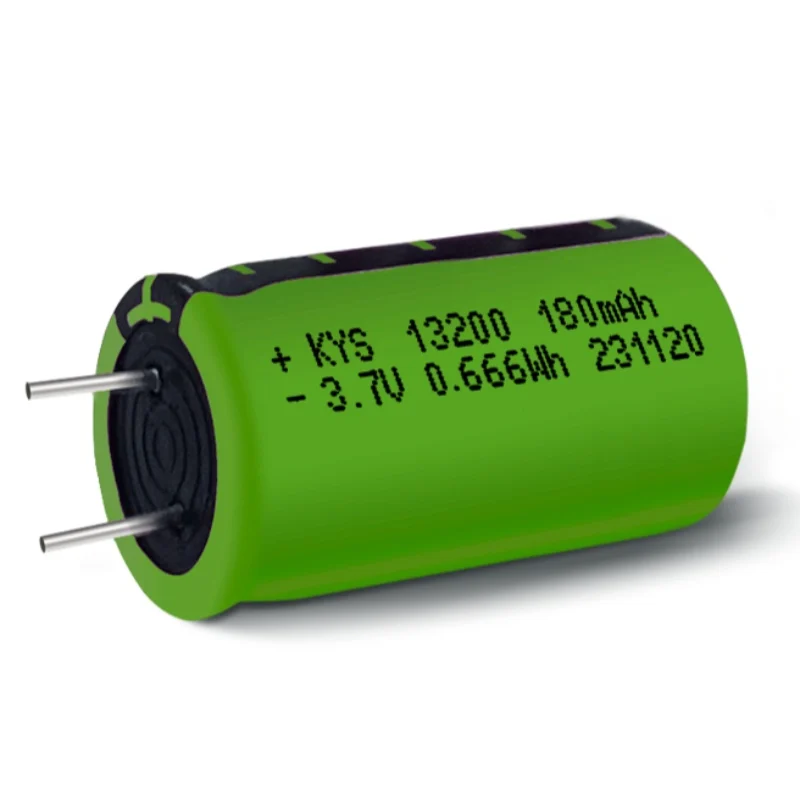

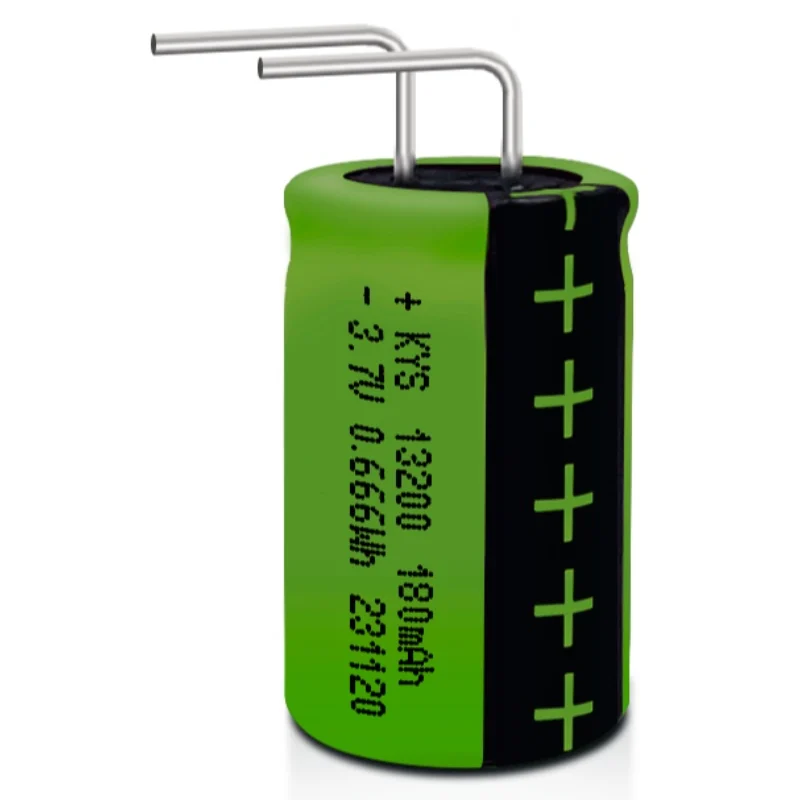

13200 3.7V充電式リチウムイオン電池

Rechargeable Li-ion Battery Cell Structure Overview

Engineers design the rechargeable Li-ion battery described in the 13200 3.7V lithium capacitor-style format by integrating a compact electrode stack into a sealed cylindrical enclosure. First, they arrange cathode and anode foils with a microporous separator in between, and they wind the layered structure into a tightly controlled spiral core. Meanwhile, they insert the rolled assembly into a rigid metal housing, and they stabilize internal alignment before electrolyte processing begins. After that, technicians secure the internal structure to prevent displacement during subsequent sealing operations.

材料系および電気化学部品

Manufacturers coat lithium metal oxide compounds onto aluminum foil to form the cathode layer, and they apply graphite-based slurry onto copper foil to construct the anode layer. In addition, they introduce a PE/PP multilayer separator to maintain ionic conduction while preventing direct electrode contact. Furthermore, they prepare an organic carbonate electrolyte containing lithium salts such as LiPF6, and they regulate moisture content to maintain chemical stability. Meanwhile, the cylindrical shell uses aluminum alloy or steel material to provide mechanical rigidity and pressure resistance.

Electrode Assembly and Winding Process

Technicians cut coated electrodes into precise strips, and they feed them into automated winding machines to form a uniform jelly-roll structure. Then, they control winding tension carefully to avoid deformation and internal stress accumulation. After that, they insert the rolled core into the cylindrical casing and connect electrode tabs to the terminal structure. Subsequently, they perform laser or resistance welding to secure electrical connections. Meanwhile, they verify positional accuracy to ensure uniform layering throughout the cell.

Formation Cycling and Industrial Standards Control

Engineers initiate formation cycling to activate electrochemical reactions and stabilize the solid electrolyte interphase layer within the cell. Then, they conduct aging tests under controlled temperature environments to evaluate voltage stability and impedance behavior. Finally, quality teams perform dimensional inspection, internal resistance measurement, and sealing verification. Throughout production, they comply with IEC 62133 and UN38.3 standards, and they validate mechanical integrity, electrical consistency, and transport safety requirements for rechargeable Li-ion battery manufacturing.

製品の特徴

1. 🛠️ カスタマイズ可能
   顧客の要望に合わせてカスタマイズ可能
2. ⚡ ハイパワー
   最大20°Cの放電率が利用可能です
3. ⏱️ 長周期寿命
   長期的な製品使用ニーズを満たします
4. 🛡️ 高い安全性
   包括的な安全試験に合格
5. 🔋 真定格容量
   プロダクトデザイン能力に合致します
6. ⚛️ 多化学オプション
   LCO、NCM、NCA、LFPシステムをカバーしています
7. 🧰 多重保護機構
   過充電、過放電、過電流、ショート回路保護を備えた内蔵保護ボード

製品応用分野

この製品は、さまざまな携帯型および電源型電子機器に適しており、典型的な用途は以下の通りです:

• パーソナルケアと健康: 電動歯ブラシ、美容機器、フィットネストラッカー、医療機器

• スマートデジタル&オーディオ: ヘッドホン、スピーカー、ネブライザー、おもちゃ、ライト

• 金銭的支払いとオフィス: POSマシン、USBトークン、ポータブルプリンター
