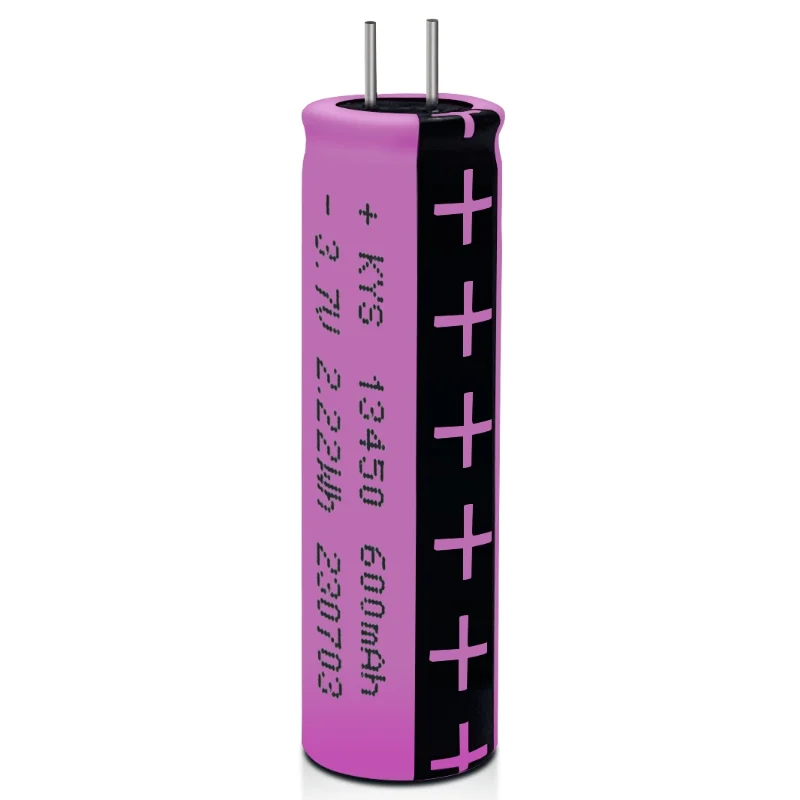

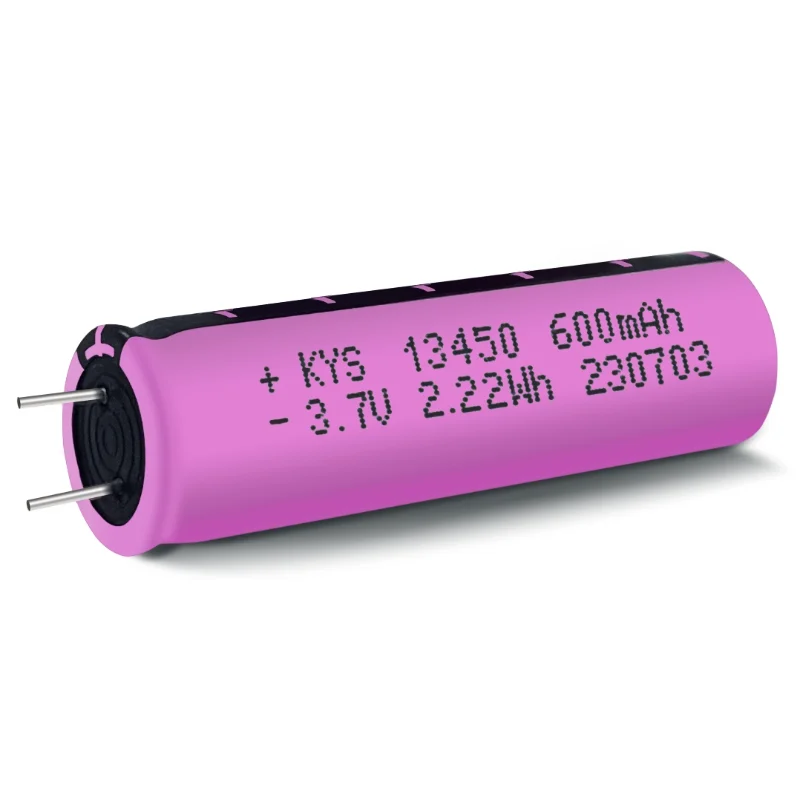

13450 3.7V小型円筒形リチウムイオン電池

Compact Cylindrical Lithium Battery Structural Overview

Engineers construct the compact cylindrical lithium battery (13450 series, 3.7V class) using a tightly controlled micro roll-core architecture. First, they laminate cathode foil, anode foil, and separator film into a continuous layered strip, and they wind it into a compact spiral core under controlled tension. Meanwhile, they regulate alignment precision to keep electrode spacing uniform throughout the winding process. After that, technicians insert the finished core into a compact cylindrical metal casing and stabilize its internal geometry before electrolyte filling begins.

Material Composition and Electrochemical Layers

Manufacturers coat lithium transition-metal oxide onto aluminum foil to form the cathode layer, while they apply graphite-based slurry onto copper foil to build the anode layer. In addition, they introduce a PP/PE microporous separator to support lithium-ion transport and prevent internal short contact. Furthermore, they prepare an organic carbonate electrolyte containing lithium salts such as LiPF6, and they strictly control moisture levels to maintain chemical stability. Meanwhile, the cylindrical shell uses high-strength steel or aluminum alloy to ensure structural rigidity and sealing performance.

電極の製造および巻線プロセス

Technicians mix active materials, conductive carbon, and polymer binders into a uniform slurry system, and they coat it onto metal foils using precision coating equipment. Then, they dry the coated electrodes through staged thermal processing to remove residual solvents. Subsequently, they compress electrode surfaces through calendaring to regulate density and thickness consistency. After cutting the electrodes into narrow strips, they feed them into automated winding machines to form a uniform jelly-roll core. Meanwhile, they weld electrode tabs using ultrasonic or resistance methods to ensure stable electrical connections.

Formation Cycling and Standard Compliance System

Engineers initiate formation cycling to activate electrochemical reactions and stabilize internal interfacial layers. Then, they conduct aging tests under controlled temperature environments to evaluate voltage stability and impedance behavior. Finally, quality teams perform dimensional inspection, insulation resistance testing, and sealing verification. Throughout production, manufacturers comply with IEC 62133 and UN38.3 standards, ensuring structural integrity, electrical consistency, and transport safety compliance for compact cylindrical lithium battery manufacturing.

製品の特徴

1. 🛠️ カスタマイズ可能
   顧客の要望に合わせてカスタマイズ可能
2. ⚡ ハイパワー
   最大20°Cの放電率が利用可能です
3. ⏱️ 長周期寿命
   長期的な製品使用ニーズを満たします
4. 🛡️ 高い安全性
   包括的な安全試験に合格
5. 🔋 真定格容量
   プロダクトデザイン能力に合致します
6. ⚛️ 多化学オプション
   LCO、NCM、NCA、LFPシステムをカバーしています
7. 🧰 多重保護機構
   過充電、過放電、過電流、ショート回路保護を備えた内蔵保護ボード

製品応用分野

この製品は、さまざまな携帯型および電源型電子機器に適しており、典型的な用途は以下の通りです:

• パーソナルケアと健康: 電動歯ブラシ、美容機器、フィットネストラッカー、医療機器

• スマートデジタル&オーディオ: ヘッドホン、スピーカー、ネブライザー、おもちゃ、ライト

• 金銭的支払いとオフィス: POSマシン、USBトークン、ポータブルプリンター
