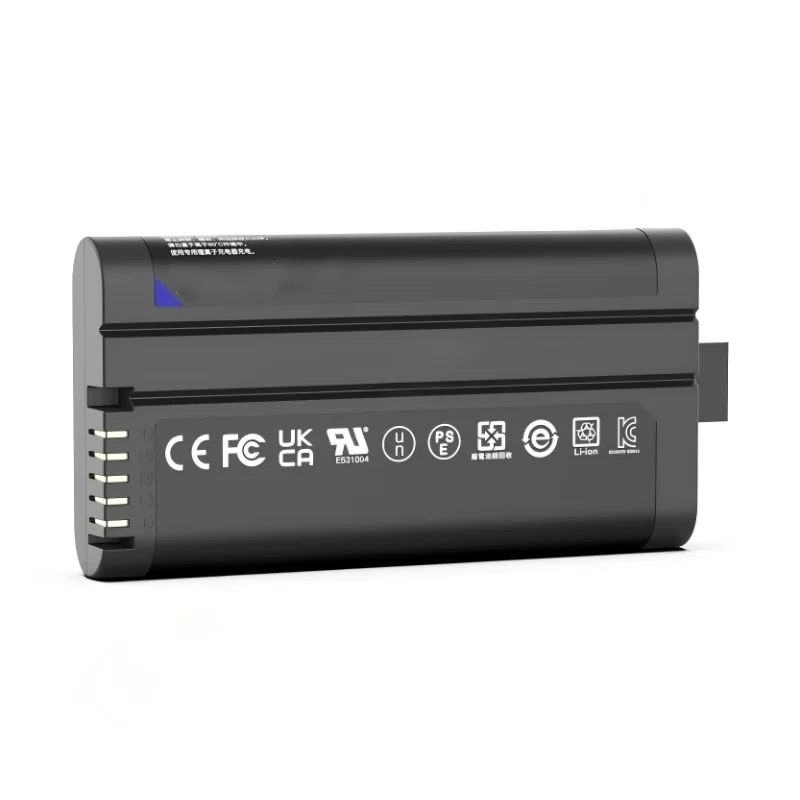

KYS2054HH スマートバッテリー 14.4V リチウムバッテリー

The Smart Battery 14.4v Lithium Battery combines four lithium-ion cell groups inside a compact electrical enclosure. Engineers arrange the cells in a controlled sequence to maintain the required voltage level. An internal electronic board collects operating information from each cell channel. Meanwhile, communication terminals transfer measurement signals to connected equipment. Protective switching components interrupt current flow whenever irregular electrical conditions appear.

Cell Materials and Internal Composition

Manufacturers produce the cell structure using lithium-based cathode compounds and graphite anode materials. Aluminum foil supports positive current transmission, while copper foil handles negative electron collection. A separator membrane sits between electrode layers and prevents direct contact during operation. In addition, technicians install insulation sheets around conductive sections to reduce leakage risk. The external shell uses reinforced polymer and metal supports to maintain alignment during movement and vibration.

Assembly Procedure and Electrical Routing

Operators connect the lithium cells through nickel tab welding and form a four-series electrical arrangement. After cell grouping, technicians attach balance wires and sensing leads to each connection point. The integrated circuit board samples voltage and temperature values continuously. Furthermore, MOSFET switching devices regulate charging and discharging pathways according to preset thresholds. Cable anchors stabilize internal wiring and reduce stress on terminal joints during repeated handling.

Heat Distribution and Structural Arrangement

Thermal energy moves through spacing channels placed between adjacent cell rows. Conductive interface pads help distribute heat across the enclosure surface. Instead of using rotating cooling components, the structure relies on internal spacing and material conductivity for temperature control. The outer housing absorbs compression forces and protects the internal assembly from external impact. Access openings allow technicians to inspect terminal areas without removing the full enclosure.

Standards and Manufacturing Verification

Production follows IEC 62133 and UN38.3 requirements for lithium battery assemblies. Engineers perform insulation testing, voltage retention checks, and repeated charge-discharge evaluations on each batch. Serial identification codes support traceability during manufacturing and transport procedures. Packaging inspections confirm terminal isolation before shipment release.

製品の特徴

• 4S2P removable lithium-ion battery pack
• 世界中の複数の地域の規制に準拠しています
• 標準SMBus v1.1インターフェース
• 統合LED充電状態(SOC)インジケーター
• パナソニック製セルを使用し、市場で最も高いエネルギー密度と安定性を誇ります
• JEITA課金最適化ルールに合致します
• 過充電、過放電、過電流、過熱、ショート回路保護などの包括的な安全保護機能を備えています
• バッテリー寿命を効果的に向上させるためのバランス機能を備えています
• TI precise power calculation

製品応用分野

• クラスIII医療機器
• 精密測定機器
• 産業用コンピュータ
• 非破壊試験装置
• 携帯型の産業用機器や医療機器などです。
