KYS2037DH 工具なしバッテリー交換

The Toolless Battery Replacement integrates a multi-cell lithium-ion structure with an embedded smart control system. Engineers assemble the pack using a series-parallel cell configuration to stabilize electrical output. The internal battery management system continuously monitors voltage, current, and temperature. Meanwhile, communication lines transmit status data through SMBus protocol for system-level coordination. Protective logic circuits respond to abnormal conditions in real time.

Materials and Cell Structure

Manufacturers select cylindrical lithium-ion cells based on consistent electrochemical properties. Cathode layers use lithium metal oxide compounds, while graphite forms the anode matrix. Copper foil collects electron flow on the negative side, and aluminum foil supports the positive electrode. A microporous separator allows ion transfer while blocking direct contact between electrodes. In addition, the enclosure uses reinforced polymer or aluminum housing to maintain structural integrity under mechanical stress.

Electrical Configuration and Control System

Technicians connect cells into controlled 2S or multi-string architectures depending on output requirements. Spot welding secures nickel tabs and reduces resistance at joint points. The battery management system performs real-time balancing across all cell groups. It also regulates charge and discharge limits through MOSFET switching control. Furthermore, firmware logic tracks cycle count and adjusts safety thresholds dynamically. Wiring harnesses include strain-relief structures to avoid disconnection during vibration.

Thermal Management and Mechanical Design

Designers integrate thermal pathways to distribute heat evenly across the pack. Air gaps and conductive plates guide temperature flow between modules. In some configurations, passive cooling structures assist heat dissipation without moving parts. The housing resists compression and isolates internal components from external shock. Service interfaces allow inspection and data reading without dismantling the pack.

Standards and Compliance

Production follows IEC 62133, UN38.3, and ISO-based safety frameworks. Each unit undergoes electrical endurance testing, insulation resistance verification, and thermal cycling validation. Manufacturers also apply traceability labeling for batch control. These procedures ensure consistent manufacturing quality and regulated transport certification across global supply chains.

製品の特徴

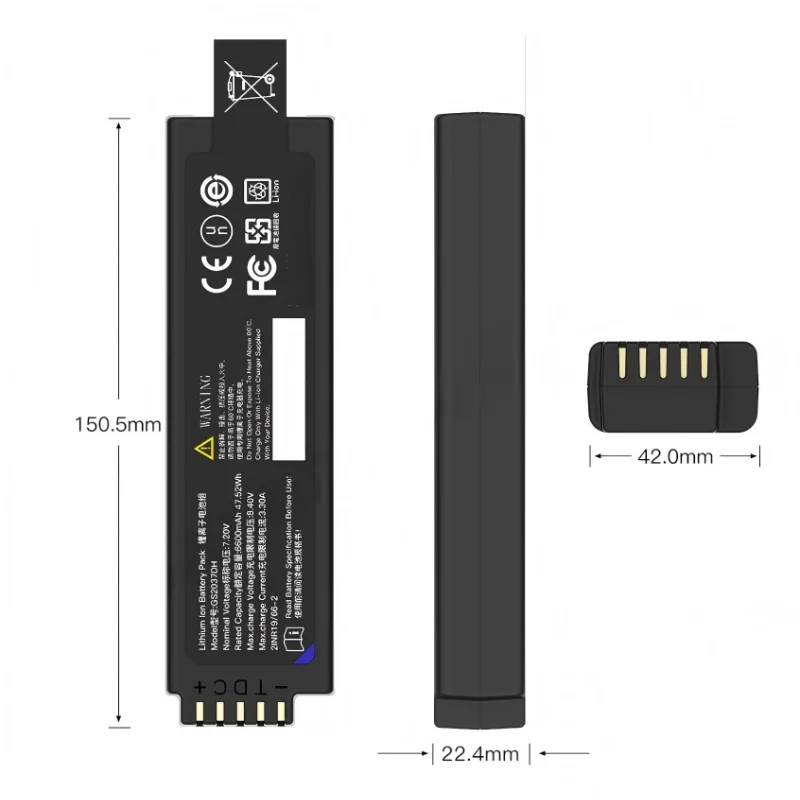

• 2S2P Removable Lithium-ion Battery Pack
• 世界中の複数の地域の規制に準拠しています
• 標準SMBus v1.1インターフェース
• 統合LED充電状態(SOC)インジケーター
• Uses Panasonic cells, boasting the highest energy density and stability on the market, meeting JEITA charging optimization rules
• 過充電、過放電、過電流、過熱、ショート回路保護などの包括的な安全保護機能を備えています
• バッテリー寿命を効果的に向上させるためのバランス機能を備えています
• TI精密バッテリー計算

製品応用分野

• クラスIII医療機器
• 精密測定機器
• 産業用コンピュータ
• 非破壊試験装置
• 携帯型の産業用機器や医療機器などです。
