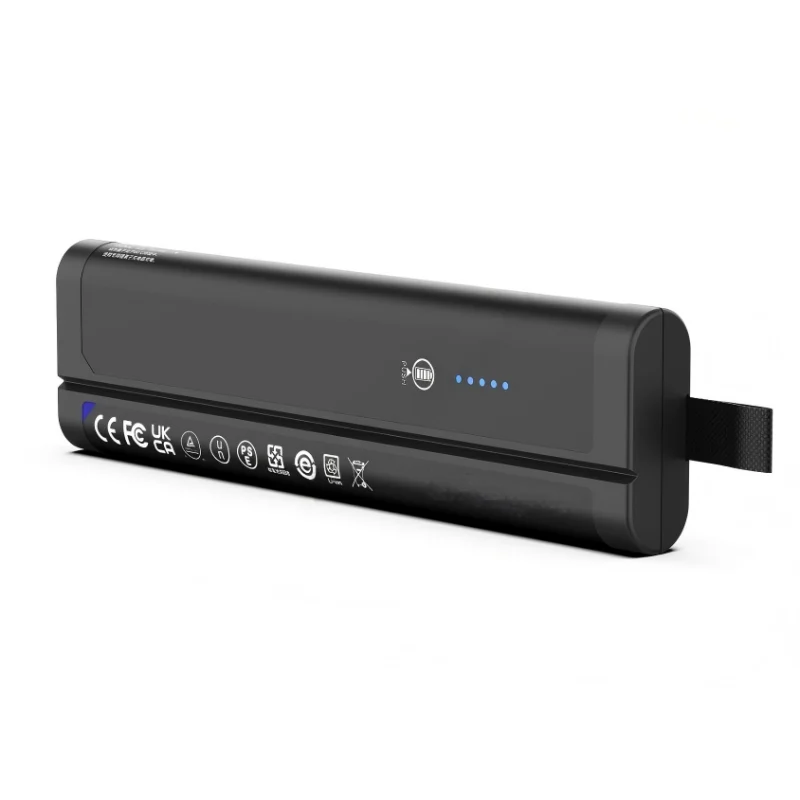

KYS2040IM 10.8Vリチウムイオン電池

The 10.8V Lithium-ion Battery builds its structure through a three-series lithium cell arrangement. Engineers align cell groups in a fixed electrical path and route energy through a dedicated protection board. Measurement circuits scan each cell node in real time. At the same time, signal channels pass diagnostic data to external monitoring equipment. When irregular values appear, the control board interrupts output immediately.

材料とセルアーキテクチャ

Cell construction uses layered lithium-metal-oxide cathodes paired with graphite anodes. Copper sheets guide electron collection on the negative side. Aluminum layers support current transfer on the positive side. A polymer separator film sits between electrodes and blocks direct contact while still allowing ion movement. In addition, the enclosure combines rigid plastic and metal reinforcement to maintain structural alignment during compression and vibration.

Electrical Layout and Circuit Handling

Technicians connect three cell blocks in series to form the 10.8V configuration. Nickel strips form welded joints between cells and reduce resistance at connection points. The protection board attaches to the terminal set and handles cutoff actions during abnormal electrical behavior. Balance lines run across each cell segment and equalize charge levels during operation. Meanwhile, cable anchoring points secure wiring and reduce mechanical stress.

Heat Path and Mechanical Structure

Heat transfer routes pass through spacing channels between cells. Conductive pads distribute thermal energy across the pack body. Instead of active cooling, the design relies on internal spacing geometry to guide heat movement. The outer shell absorbs external force and keeps internal modules in fixed position. Service openings allow inspection of electrical terminals without dismantling the full structure.

認証および生産管理

Manufacturing follows IEC 62133 and UN38.3 transport rules for lithium systems. Each pack undergoes insulation resistance measurement, load cycling tests, and voltage decay tracking. Engineers record serial-level data for traceability. Packaging inspection confirms terminal isolation before shipment. Documentation links each unit to its production batch for compliance tracking.

製品の特徴

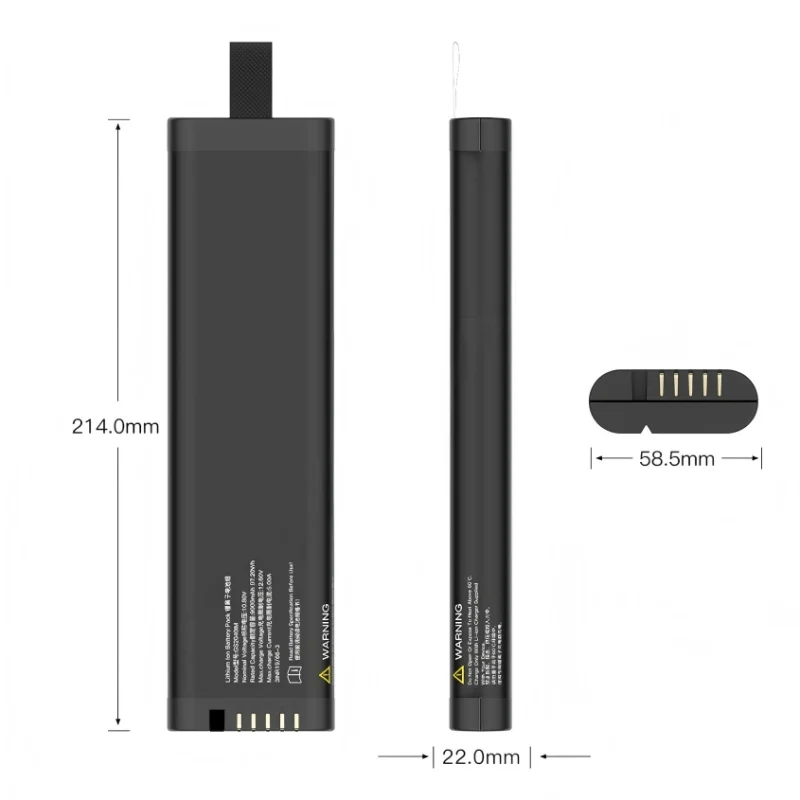

• 3S3P 取り外し可能なリチウムイオンバッテリーパック
• 世界中の複数の地域の規制に準拠しています
• 標準SMBus v1.1インターフェース
• 統合LED充電状態(SOC)インジケーター
• JEITA課金最適化ルールに合致します
• 過充電、過放電、過電流、過熱、ショート回路保護などの包括的な安全保護機能を備えています
• バッテリー寿命を効果的に向上させるためのバランス機能を備えています
• TI精密バッテリー計算

製品応用分野

• クラスIII医療機器
• 精密測定機器
• 産業用コンピュータ
• 非破壊試験装置
• 携帯型の産業用機器や医療機器などです。
